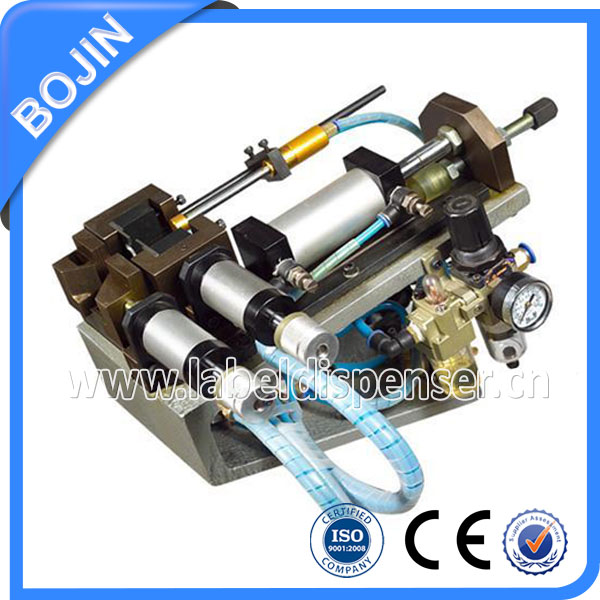

BJ-310 Pneumatic Cable Stripping Machine

* stripping length: 100mm
* stripping capacity: max. 15mm
* inlet air working pressure: 3-7 kg/cm2
* stripping force: 49~115kg
* capacity: 50


Operation Video


[custom_table style=”1″]
 Model  BJ-310
 Stripping Length  100mm
 Stripping Capacity  Max.15mm
 Power Supply  AC 110V/60Hz 220V/50Hz
 Inlet Air Working Pressure  3-7 kg/cm2
 Stripping Force  49-115kg
 Capacity  50
 Weight  25kg
Measurement  480×330×280mm

Pneumatic Cable Stripping Machine

Pneumatic Cable Stripping Machine

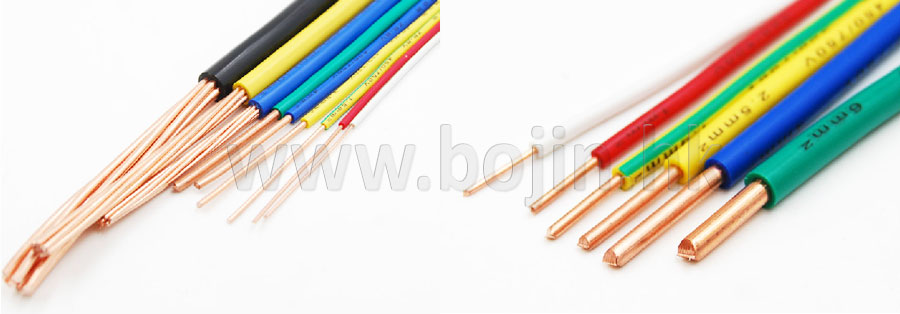

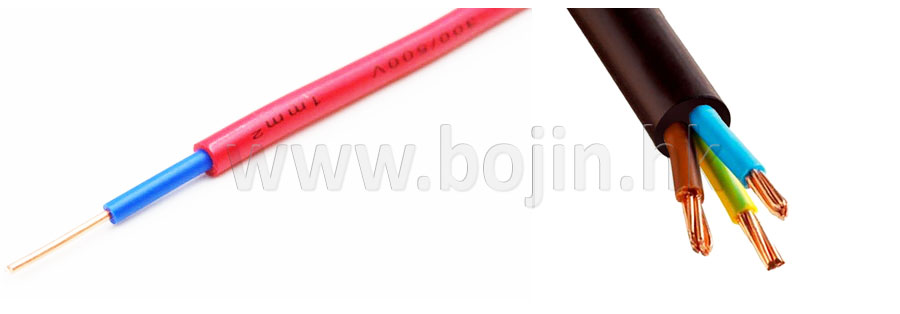

wire stripping machine samples

Payment & Delivery

* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.

We Provide

* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.


* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
Related Wire stripping machines

Model Number BJ-02B BJ-02D BJ-02F BJ-02MAX
Wire size 0.1~2.5 mm2 0.1- 4.5mm2 0.2 – 8.0 mm2 0.2– 16mm2
Conduit diameter Φ6 Φ6 Φ10 Φ13
Wire Gauge Range AWG16 – AWG32 AWG12 – AWG32 AWG8 – AWG32 AWG5-AWG30#
Drive Mode Four-wheel drive Four-wheel drive Four-wheel drive Four-wheel drive
Weight 35kg 35kg 35kg 35kg
