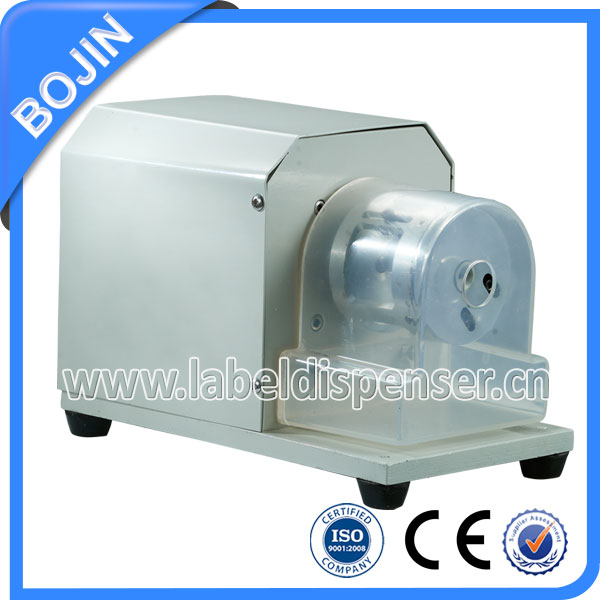

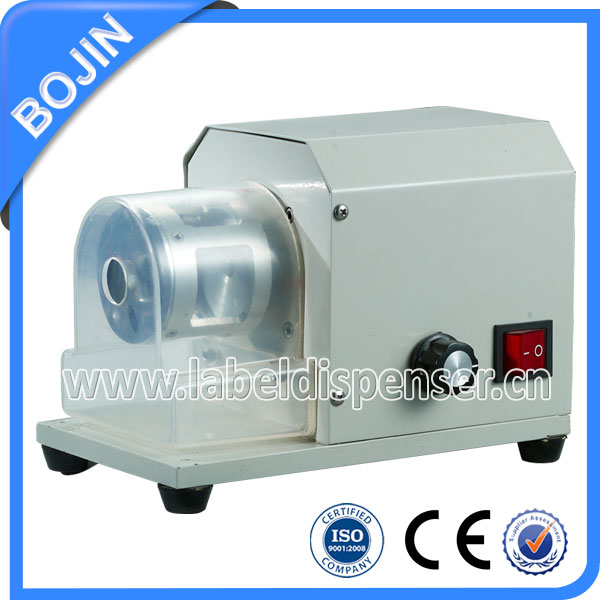

Worked by the micro-motor. The machine is small and easy to move, low voice, fast speed. Apply for the single-multi plastic and copper wire’s striping and twisting. Can strip and twist at the same time.
Performance and parameters
* Model: XC-180
* Input voltage: AC220V/50Hz
* power: 40W
* Weight: 6Kg
* Processing Range: 1-4mm
* Processing range: 0.1-1.5mm²
* Striping length: 2-20mm
* Specification: 210L×125W×155Hmm
Procedures of operation
a. first please set the length of the wire.
b. according to your line size, select the matched die approach, then you need adjust the length of the wire which needed twisting and striping.
c. start the machine.
d. setting the parameter machinery speed.
e. quickly put the wire into the die approach, and quickly pull out at the same time, and then it is finished.
Payment & Delivery
* MOQ: 1 Unit
* Port: Shanghai
* Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
* Packaging Material: Paper/Wood
* Packaging Type: Cartons
* Delivery: We’ll arrange delivery within 3 days on the receipt of payment.
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1-year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
* QC: All products will be checked before delivery.
* Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
* Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
* Operation Guidance: If you have any problem with operation, please feel free to contact us.
Related Wire stripping machines
|Wire size||0.1~2.5 mm2||0.1- 4.5mm2||0.2 – 8.0 mm2||0.2– 16mm2|
|Wire Gauge Range||AWG16 – AWG32||AWG12 – AWG32||AWG8 – AWG32||AWG5-AWG30#|
|Drive Mode||Four-wheel drive||Four-wheel drive||Four-wheel drive||Four-wheel drive|
