Double two layers Round Jacket wire cutting and stripping machine
Good news, we have new machine which can strip two layers at one time for round jacket wire.
Please refer to below details:
Model: BJ-350ND FOUR DRIVERS
Power:AC220/ 50HZ 110V/60HZ
Power: Rated 200W
Display:Full English LCD Display
Cutting length:1-9999mm
Stripping length for both side: End of a thread 0-50, line tail 0-50
Motor Step Angle Accuracy:3-phase 6 shot 1.5/3
Cutting Tolerance: ±(0.002xL) mm or less
Cut the middle of stripping: 11
Core cross-section cut-line:0.2 – 8.0mm²( AWG10#-AWG30#)
Conduit diameter:Φ10
Appropriate wire stripping: PVC, Teflon, glass and Jacket wire
Blade Material: Hard tungsten steel
Stripper speed (Article / h):3000~8000pcs/hour L=100MM
Size:400*450*300mm 34kg

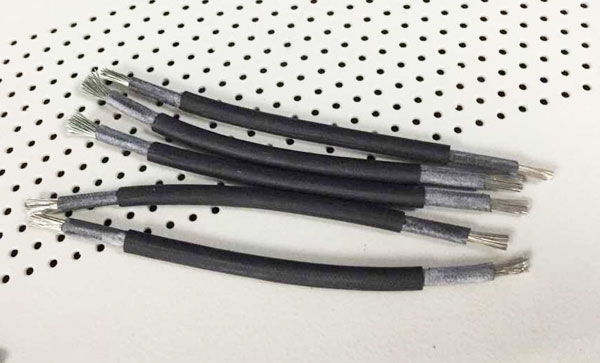

Samples:
Double two layers Round Jacket wire cutting and stripping machine
